Overfill Prevention Valve Less Top Connection, Aluminum
Overfill Prevention Valve Less Top Connection, Aluminum
Description
Description

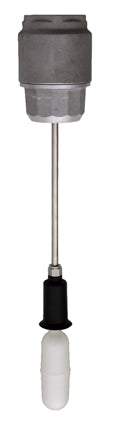

The 9095SA Overfill Prevention Valve is installed at the fill port of a storage tank. Used in a pressurized tight fill application, the valve helps prevent tank overfills by closing when the liquid level reaches a pre-set warning level (90-95% full). The valve is installed on a standard 2” NPT male connection and has a built-in bleed hole that allows the fill hose pressure to be relieved after the valve closes. This bleed hole also provides anti-siphon protection for the valve. When installed to manufacturer requirements, the Morrison 9095SA Overfill Prevention Valve can eliminate hazardous liquid spills.
For use on clean product only. Not recommended for motor oil based on viscosity of 300 centistokes.
Standard Features
Direct Fill Installations
- Installs on tank top by threading onto a 2 inch male NPT riser
- Installs inside 2” Morrison Model 516 or 518 tank top spill container
Remote Fill Installations
- Valve has 2” female NPT inlet threads for installation piping to remote fill point
- Field adjustable shutoff range between 2” to 12”
- Full flow until shutoff point
- Designed for fuel not requiring a drop tube
- Integral pressure relief
Construction Details
- Direct fill adaptor: Aluminum (Part A or Part F)
- Body and piston: Passivated aluminum
- Upper float rod: Stainless steel
- Lower float rod: Passivated aluminum
- Float: Polypropylene
- Float guard: Polypropylene
Code Compliance
ULC-S661-10 listed, NFPA 30, 30A, UFC, IFC, PEI/RP200, PEI/RP 600, and Florida DEP EQ-858
Fluid Compatibility
Diesel fuel, Biodiesel, and fuel oil. (Other fluids may also be compatible with further review)
