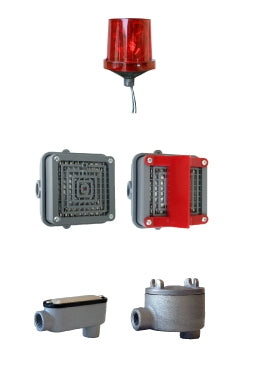

Conduit junction housing (NEMA 7, Group C & D)

Remote Strobe Features

• Compact rotating warning light
• Single retaining screw allows for quick and easy access for inspection and relamping
• Water-resistant
• Indoor and outdoor applications

Remote Horn Features

• Produces a loud horn tone by the electro-mechanical vibration of a diaphragm (100dB at 10 feet)
• Excellent for general alarm in areas of high ambient noise levels
• Enclosed in a zinc die-cast housing and sealed with grey powder-coat paint
• Compact size and heavy-duty construction

Remote Horn with Strobe Features

• Units can either independently or simultaneously wired with the audible device
• Recommended for use in industrial applications and situations where effective visual warning is needed
• Compact size
• Indoor and outdoor applications

Conduit Junction Housing Features

• Act as pull and splice boxes
• Connect lengths of conduit
• Provide access to connectors for maintenance and future changes
• Act as pull outlets for connectors being installed
• ½” conduit connection

Code Compliance

Remote Strobe: UL and cUL Listed

Remote Horn: UL and cUL Listed; CSA listed (File No. 005835, Model 350) and FM Approved

Remote Horn with Strobe: UL Listed; CSA listed (File No. 005835, Model VALS)

925—-0113 2B: UL and cUL Listed; NEMA 4

925—-0114 2B: UL Listed; NEC/CEC: Class I, Division 1 & 2, Groups C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; Class III; ANSI Standard: C33.27; CSA listed (File No. 013046, Model GUAB); NEMA 3, 4, 7CD, 9EFG
