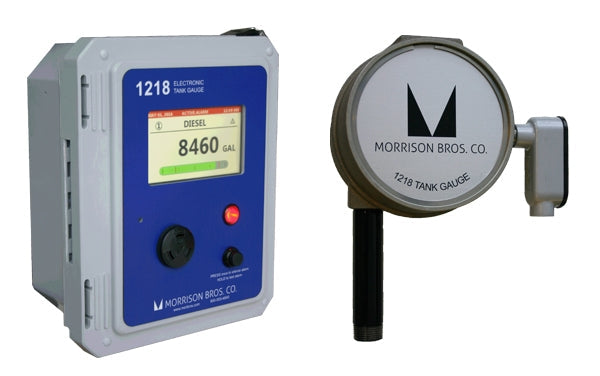

Remote Console up to 4 tanks 6.0 lb

The Morrison 1218 electronic tank gauge series monitors and displays the liquid level and/or volume of product stored in 1 to 4 aboveground storage tanks. The tank sensor utilizes a mechanical float to monitor the tank liquid level and electronically converts the tank level to display on the system console located within 1000’ of the tank sensor.

System Console Features

• 4.3” diagonal color LCD display (480x272 pixels) with auto LED backlight adjustment
• System console displays liquid volume level in horizontal, rectangular, or vertical tanks
• Level units: feet and inches or centimeters (resolution to 1/10 of an inch)
• Volume units: gallons or liters
• Visual and audible alarm indication when alarm condition is activated
• 2 output relays—3 Amps @ 240 VAC
• Simple push to test or acknowledge alarm button
• USB port functionality—software updates and download event logs
• Configuration setup via Ethernet PC connection, Ethernet Network connection, or manually at console
• NEMA 4X indoor/outdoor weather protected, lockable enclosure
• Optional remote secondary console with operational functionality

Tank Sensor Features

• 25’ and 50’ models available for use with system console
• 2 dry contact, intrinsically safe inputs available in tank sensor for additional simple switch inputs
• 25’ tank sensor accuracy +/- 0.3”; 50’ tank sensor accuracy +/- 0.6”

Configuration Options

• User defined tank identifications, alarm levels, and input alarm labels
• Up to 4 programmable liquid level alarm set points per tank
• Audible alarm ON/OFF and Auto-Silence ON/OFF is programmable by input channel
• Output relays programmable as normally activated or normally deactivated and for desired alarm activations
• Email address book supports email and SMS/text message alarm and status notifications
• Sloped tank and manifold tank functionality available for specific parameters
• Heartbeat power indicator is user selectable

Network Connectivity

• Ethernet port connection (RJ-45 connector)
• TCP/IP configured with static IP address or dynamically using DHCP and local host name
• HTTPS secure web-based interface with system console for remote viewing
• Multiple display system consoles can be networked by utilizing Ethernet functionality

Business Management System Connectivity

• Modbus RTU and TCP interface configuration

Reports

• System stores an event log (up to 1,000 events) and creates a downloadable report
• Event log can be downloaded via network Ethernet connection or via USB port inside system console

Specifications

Operating temperature Range: -40°F to 140°F (-40°C to 60°C)

Humidity: 0% to 95% non-condensing

System console dimensions (H x W x D): 9⅜” x 7⅞” x 4⅝”

100-240 VAC +/- 10%, 50/60 Hz

Materials of Construction

• Tank sensor body: Passivated aluminum
• Cable and float: Stainless steel cable and float
• Console enclosure: Polyester fiberglass

Approvals

UL/cUL 913; UL/cUL 508; Listing for Tank Monitoring Equipment for Ordinary Location with Hazardous Location Intrinsically Safe Input Circuits for Class I, Division 1, Group D; Florida DEP EQ-872
