Metric mechanical tank gauge w/level alarm relay output, angled face, Drop Tube Float
Description
Description

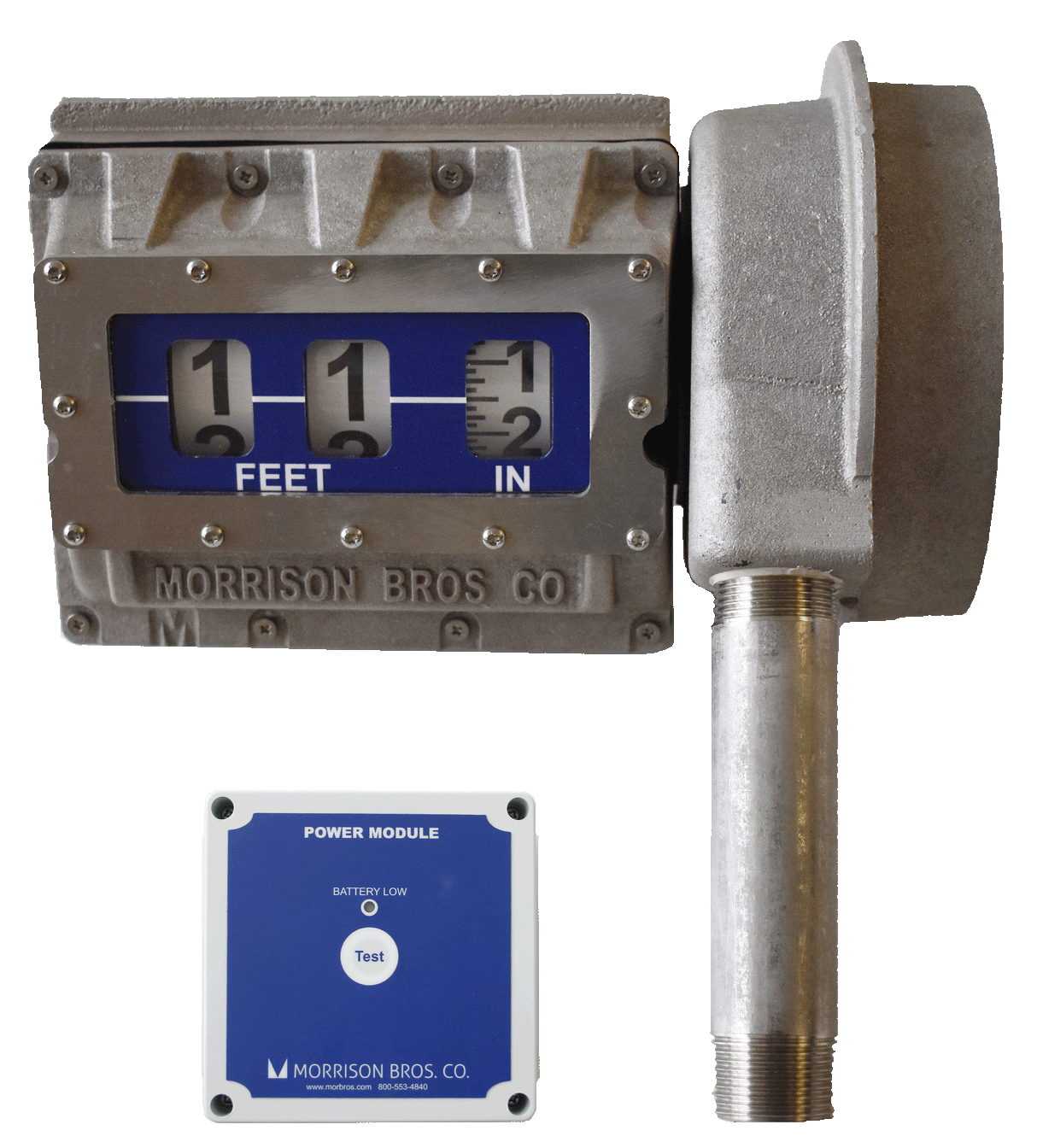

Designed for installation on top of horizontal and vertical tanks up to 25’ in height, the 1519 mechanical tank gauge provides a readout in feet and inches and includes a single liquid level set point to activate an external alarm box.
Standard Features
30’+ line of sight viewing distance
Readout in feet and inches
Easy to read from wide viewing angle
Easy to install with single vertical pipe connection
Easy to calibrate
Installs through 2” schedule 40 pipe or 2” tank bung (drop tube float models require a 4” tank opening)
Vapor is contained from the viewing area to prevent lens fogging
Mounting options include Foot base or Tank mount bracket for easy attachment to Uni-Strut Channel or other tank brackets
1619M…metric versions available, providing readouts in centimeters
Gauge with Relay Output
Desired alarm level is set within gauge head
The level alarm relay output wiring from the gauge has to be connected to an external alarm box (sold separately). Options include the 918 series and 918AC series alarm boxes.
Battery Power Module
Can be installed in any convenient location
Alarm level setting can be verified
One 3.6 volt lithium AA replaceable battery
Anticipated battery life is 4 years
Low battery light indicator
Alpha Wire 77112 (cable for connecting gauge to Battery Power Module)*
5 Conductors
22 AWG (7/30 Stranded) tinned copper
Foil shield with drain wire
Temperature range: -50 to 150C
*Three feet of wire is included with a 1619 gauge. If the Battery Power Module is installed further than three feet from the gauge, additional wire needs to be purchased.
*Separate wire is required from the gauge to external alarm. See external alarm specifications for wire requirements.
Construction Details
- Body: Cast aluminum
- Gears and gear cogs: Acetal
- Hardware (including captive screws on front cover): Stainless steel
- Float: Stainless steel
- Cable: Stainless steel
- Pulleys: Cast aluminum
- Spring: 301 stainless steel
- Shaft bushing: Stainless steel
- O-ring: FKM
- Lens cover: Acrylic
- Power module enclosure: polyester fiberglass
Code Compliance
UL/cUL 913; Florida DEP EQ-942
