Metric mechanical tank gauge, Drop Tube Float
Metric mechanical tank gauge, Drop Tube Float
Description
Description

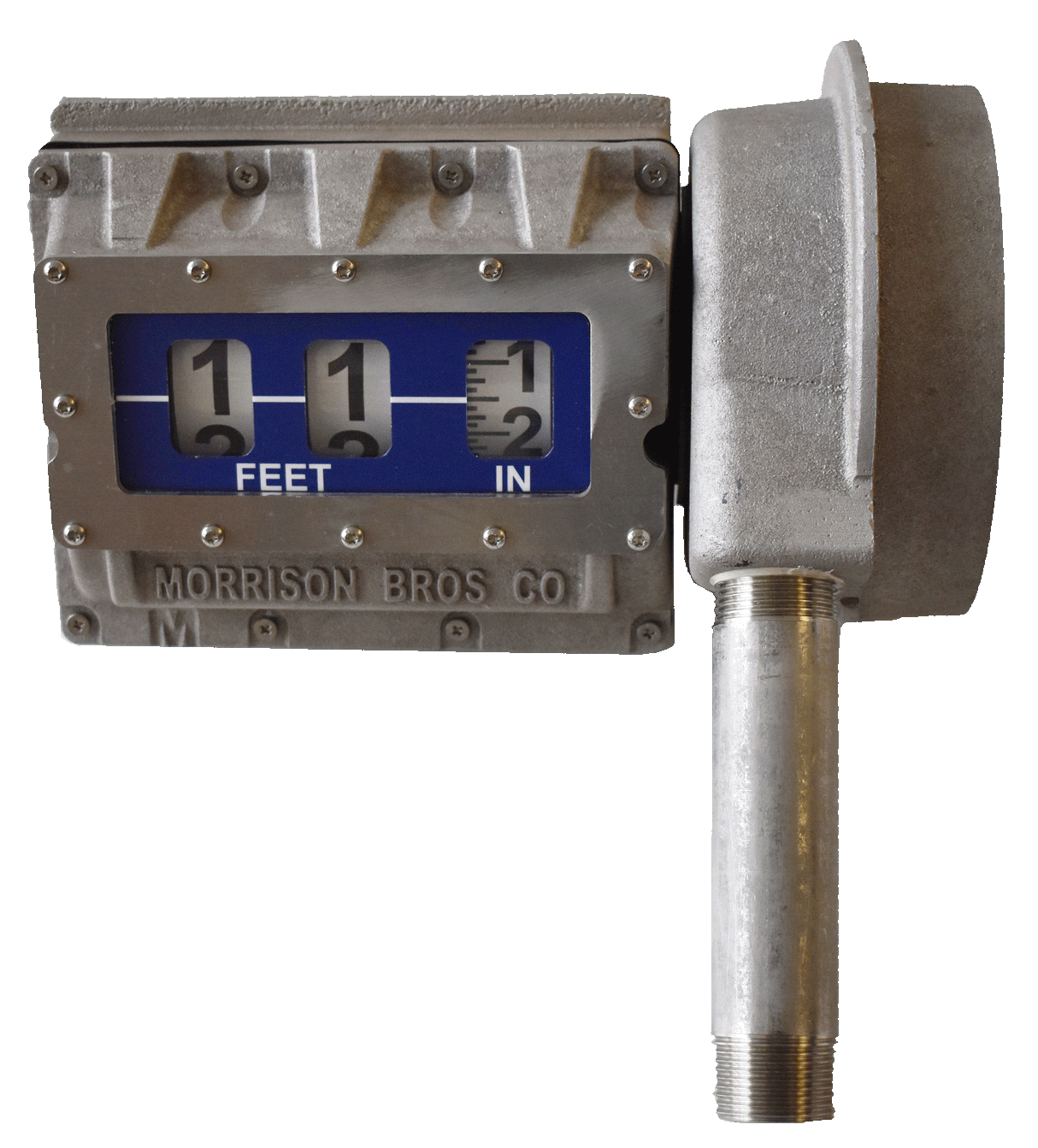

The 1618M metric mechanical tank gauge is designed for vertical tanks up to 9.5 meters (31’) in height and provides a readout in feet and inches at ground level.
Standard Features
For vertical tanks up to 9.5 meters (31’) in height, providing a readout in centimeters at ground level
Easy to read from wide viewing angle
Easy to install with single vertical pipe connection
Easy to calibrate
Installs through 2” schedule 40 pipe or 2” tank bung
Vapor is contained to prevent lens fogging
Mounting options
Foot base
Tank mount bracket for easy attachment to Uni-Strut Channel or other tank brackets
Construction Details
- Body: Cast aluminum
- Gears and gear cogs: Acetal
- Hardware (including captive screws on front cover): Stainless steel
- Float: Stainless steel
- Cable: Stainless steel
- Pulleys: Cast aluminum
