Morrison Bros. Co.  |  SKU: 1618--3010 AG

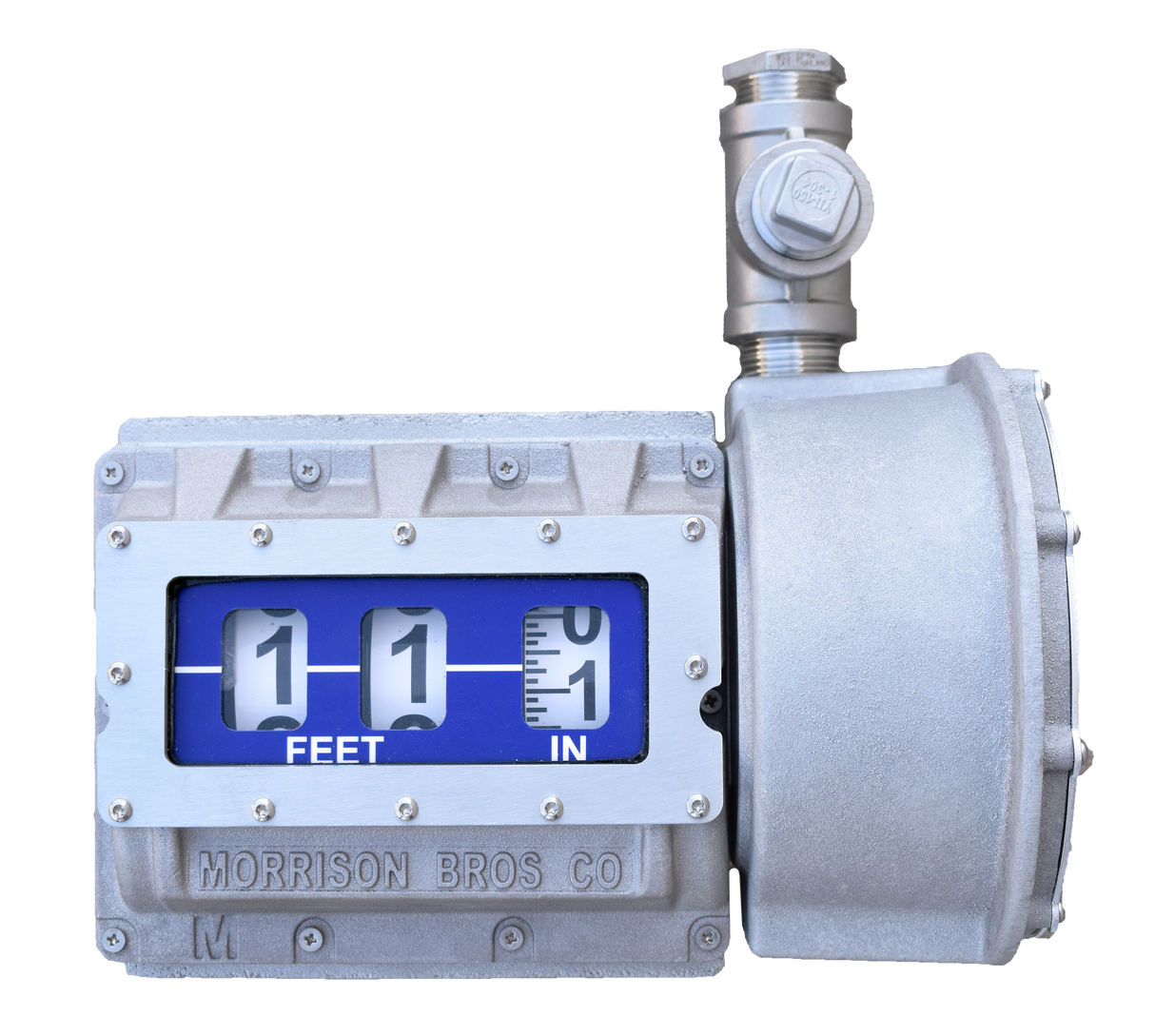

Mechanical vertical tank gauge, Drop Tube Float

$1,302.66 $1,628.33
SIZE

Delivery and Shipping

If in stock and we get the order before noon we ship out on the same day.

Mechanical vertical tank gauge, Drop Tube Float

Description

The 1618 mechanical tank gauge is designed for vertical tanks up to 50’ in height and provides a readout in feet and inches at ground level.

*Tank brackets (1618—0167 AB) sold separately.

Standard Features

30’+ line of sight viewing distance

Easy to read from wide viewing angle

Easy to install with single vertical pipe connection

Easy to calibrate

Installs through 2” schedule 40 pipe or 2” tank bung

Vapor is contained to prevent lens fogging

Mounting options

Foot base

Tank mount bracket for easy attachment to Uni-Strut Channel or other tank brackets

Construction Details

Body: Cast aluminum

Gears and gear cogs: Acetal

Hardware (including captive screws on front cover): Stainless

Float: Stainless

Cable: Stainless

Pulleys: Cast aluminum

Code Compliance

Florida DEP EQ-941
